E Clip Railway Fastening System
E Clip Railway Fastening System la se yon metòd lajman itilize ak serye pou sekirize ray yo nan baz yo nan sistèm tren tren, asire estabilite ak sekirite nan operasyon tren yo. GNEE ray se yon founisè sistèm fixation tren serye ak pwofesyonèl, nou ofri yon pakèt sistèm fixation tren tankou E Clip Railway Fastening System, Rail Spike Fastening System, Tip IV Fastening System, SKL Rail Fastening System, elatriye.

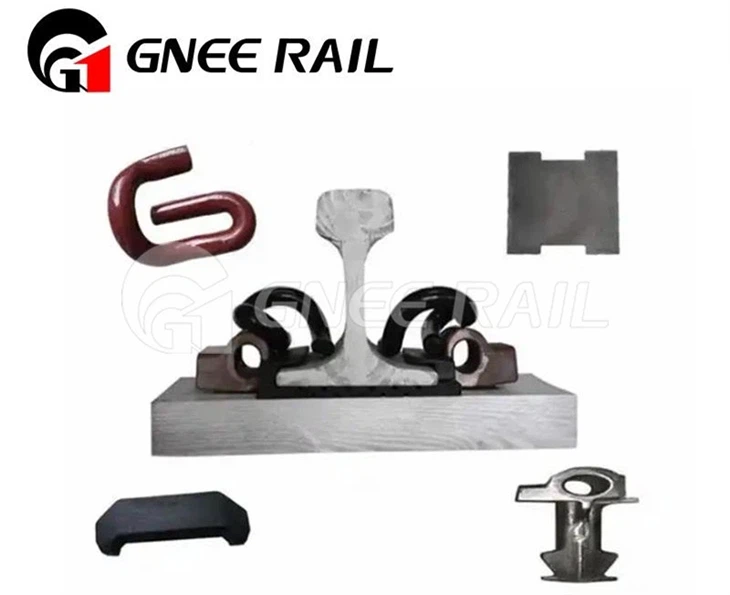

E Clip Railway Fastening System Konpozan
Konpozan sistèm fixation tren E clip sa yo travay ansanm pou asire estabilite, rezistans, ak pèfòmans tren tren an:
Klip elastik: Sekirize tren an epi absòbe chòk ak vibrasyon.
Plak kranpon: Egalman distribye chay la epi estabilize tren an.
Fastener: Boulon fò ak nwa kenbe tout bagay byen sere ansanm.
Kousinen kawotchou: absòbe vibrasyon epi redwi bri pou pi bon pèfòmans tras.
E Clip Rail Fastening System konpozan spesifikasyon
|
Kantite |
Eleman | Kalite |
| 1 | Rail Clip | E1809, E2052, E1804, E2055, E2005, E2006 |
| 2 | Distribisyon Insert | Dapre desen kliyan an |
| 3 | Izolan tren | Dapre desen kliyan an |
| 4 | Rail Pad | Dapre desen kliyan an |
Espesifikasyon sistèm E-Clip Fastening
|
Atik enkli |
Kantite |
Materyèl |
Gwosè |
Remak |
|
E clip |
2 |
60Si2MnA, 60Si2CrA |
Dia. 16mm, 18mm oswa 20mm (E1809, E2006, E2007, E2009, elatriye. |
Dite: 44-48HRC |
|
Chaj zòtèy: Dia.16mm: 500-700kgf; Dia.18mm: 750-900kgf; Dia.20mm: 1100-1400kgf |
||||
|
Fatig lavi: 5 milyon sik san kraze |
||||
|
Estanda: DIN17221, BS970, GB/T1222 |
||||
|
Zepòl |
2 |
QT500-7, QT450-10 |
Pou UIC54, UIC60, 115RE, BS80lbs, BS100lbs, 50kg tren, 60kg ray, elatriye. |
Remak: Dite nan E-clip se 44-48HRC; Chaj zòtèy pou E-clip se 500-700kgf (Dia.16mm); 750-900kgf (Dia.18mm); 1100-1400kgf (Dia.20mm); Fatig lavi E-clip se 5 milyon sik san yo pa kraze DIN17221, BS970, GB/T1222 kalifye E-clip |
|
Rail pad |
1 |
HDPE, kawotchou oswa EVA |
||
|
Izolan |
2 |
Nylon ranfòse 66 (PA66) |
